CmsTemplate simplifies performing synchronous CMS operations. More...

#include <src/main/activemq/cmsutil/CmsTemplate.h>

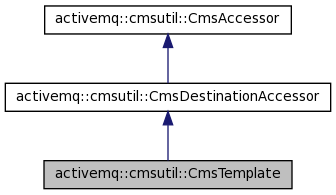

Inheritance diagram for activemq::cmsutil::CmsTemplate:

Data Structures
class	ProducerExecutor
class	ReceiveExecutor
class	ResolveProducerExecutor
class	ResolveReceiveExecutor
class	SendExecutor
Public Member Functions
	CmsTemplate ()
	CmsTemplate (cms::ConnectionFactory *connectionFactory)
virtual	~CmsTemplate () throw ()
virtual void	setDefaultDestination (cms::Destination *defaultDestination)
	Sets the destination object to be used by default for send/receive operations.
virtual const cms::Destination *	getDefaultDestination () const
	Retrieves the default destination to be used for send/receive operations.
virtual cms::Destination *	getDefaultDestination ()
	Retrieves the default destination to be used for send/receive operations.
virtual void	setDefaultDestinationName (const std::string &defaultDestinationName)
	Sets the name of the default destination to be used from send/receive operations.
virtual const std::string	getDefaultDestinationName () const
	Gets the name of the default destination to be used for send/receive operations.
virtual void	setPubSubDomain (bool pubSubDomain)
	Indicates whether the default destination is a topic (true) or a queue (false).
virtual void	setMessageIdEnabled (bool messageIdEnabled)
virtual bool	isMessageIdEnabled () const
virtual void	setMessageTimestampEnabled (bool messageTimestampEnabled)
virtual bool	isMessageTimestampEnabled () const
virtual void	setNoLocal (bool noLocal)
virtual bool	isNoLocal () const
virtual void	setReceiveTimeout (long long receiveTimeout)
virtual long long	getReceiveTimeout () const
virtual void	setExplicitQosEnabled (bool explicitQosEnabled)
	Set if the QOS values (deliveryMode, priority, timeToLive) should be used for sending a message.
virtual bool	isExplicitQosEnabled () const
	If "true", then the values of deliveryMode, priority, and timeToLive will be used when sending a message.
virtual void	setDeliveryPersistent (bool deliveryPersistent)
	Set whether message delivery should be persistent or non-persistent, specified as boolean value ("true" or "false").
virtual void	setDeliveryMode (int deliveryMode)
	Set the delivery mode to use when sending a message.
virtual int	getDeliveryMode () const
	Return the delivery mode to use when sending a message.
virtual void	setPriority (int priority)
	Set the priority of a message when sending.
virtual int	getPriority () const
	Return the priority of a message when sending.
virtual void	setTimeToLive (long long timeToLive)
	Set the time-to-live of the message when sending.
virtual long long	getTimeToLive () const
	Return the time-to-live of the message when sending.
virtual void	execute (SessionCallback *action)
	Executes the given action within a CMS Session.
virtual void	execute (ProducerCallback *action)
	Executes the given action and provides it with a CMS Session and producer.
virtual void	execute (cms::Destination dest, ProducerCallback action)
	Executes the given action and provides it with a CMS Session and producer.
virtual void	execute (const std::string &destinationName, ProducerCallback *action)
	Executes the given action and provides it with a CMS Session and producer.
virtual void	send (MessageCreator *messageCreator)
	Convenience method for sending a message to the default destination.
virtual void	send (cms::Destination dest, MessageCreator messageCreator)
	Convenience method for sending a message to the specified destination.
virtual void	send (const std::string &destinationName, MessageCreator *messageCreator)
	Convenience method for sending a message to the specified destination.
virtual cms::Message *	receive ()
	Performs a synchronous read from the default destination.
virtual cms::Message *	receive (cms::Destination *destination)
	Performs a synchronous read from the specified destination.
virtual cms::Message *	receive (const std::string &destinationName)
	Performs a synchronous read from the specified destination.
virtual cms::Message *	receiveSelected (const std::string &selector)
	Performs a synchronous read consuming only messages identified by the given selector.
virtual cms::Message *	receiveSelected (cms::Destination *destination, const std::string &selector)
	Performs a synchronous read from the specified destination, consuming only messages identified by the given selector.
virtual cms::Message *	receiveSelected (const std::string &destinationName, const std::string &selector)
	Performs a synchronous read from the specified destination, consuming only messages identified by the given selector.
Static Public Attributes
static const long long	RECEIVE_TIMEOUT_NO_WAIT
	Timeout value indicating that a receive operation should check if a message is immediately available without blocking.
static const long long	RECEIVE_TIMEOUT_INDEFINITE_WAIT
	Timeout value indicating a blocking receive without timeout.
static const int	DEFAULT_PRIORITY
	Default message priority.
static const long long	DEFAULT_TIME_TO_LIVE
	My default, messages should live forever.
Protected Member Functions
void	init ()
	Initializes this object and prepares it for use.
void	destroy ()
	Shuts down this object and destroys any allocated resources.
Friends
class	ProducerExecutor
class	ResolveProducerExecutor
class	SendExecutor
class	ReceiveExecutor
class	ResolveReceiveExecutor

Detailed Description

CmsTemplate simplifies performing synchronous CMS operations.

This class is intended to be for CMS what Spring's JmsTemplate is for JMS. Provided with a CMS ConnectionFactory, creates and manages all other CMS resources internally.

Before using CmsTemplate the user must first set the destination (either by name or by setting the destination object directly) and then call init to initialize the object for use.

CmsTemplate allows the user to get access to a CMS Session through a user-defined SessionCallback. Similarly, if the user wants direct access to a CMS MessageProducer, it can provide a ProducerCallback. As a convenience, the user can bypass having to provide callbacks altogether for sending messages, by calling one of the send methods.

See also:: SessionCallback; ProducerCallback; MessageCreator

Constructor & Destructor Documentation

activemq::cmsutil::CmsTemplate::CmsTemplate ( )

activemq::cmsutil::CmsTemplate::CmsTemplate ( cms::ConnectionFactory * connectionFactory )

virtual activemq::cmsutil::CmsTemplate::~CmsTemplate ( ) throw () [virtual]

Member Function Documentation

void activemq::cmsutil::CmsTemplate::destroy ( ) [protected, virtual]

Shuts down this object and destroys any allocated resources.

Exceptions:

CMSException	if an error occurs during destruction.
IllegalStateException	if this object has already been destroyed.

Reimplemented from activemq::cmsutil::CmsDestinationAccessor.

virtual void activemq::cmsutil::CmsTemplate::execute ( SessionCallback * action ) [virtual]

Executes the given action within a CMS Session.

Parameters:

action the action to perform within a CMS Session

Exceptions:

cms::CMSException thrown if an error occurs.

virtual void activemq::cmsutil::CmsTemplate::execute ( ProducerCallback * action ) [virtual]

Executes the given action and provides it with a CMS Session and producer.

Parameters:

action the action to perform

Exceptions:

cms::CMSException thrown if an error occurs.

virtual void activemq::cmsutil::CmsTemplate::execute	(	cms::Destination *	dest,
		ProducerCallback *	action
	)		`[virtual]`

Executes the given action and provides it with a CMS Session and producer.

Parameters:

dest	the destination to send messages to
action	the action to perform

Exceptions:

cms::CMSException thrown if an error occurs.

virtual void activemq::cmsutil::CmsTemplate::execute	(	const std::string &	destinationName,
		ProducerCallback *	action
	)		`[virtual]`

Executes the given action and provides it with a CMS Session and producer.

Parameters:

destinationName	the name of the destination to send messages to (to internally be resolved to an actual destination)
action	the action to perform

Exceptions:

cms::CMSException thrown if an error occurs.

virtual cms::Destination* activemq::cmsutil::CmsTemplate::getDefaultDestination ( ) [inline, virtual]

Retrieves the default destination to be used for send/receive operations.

Returns:: the default destination. Non-const version of this method.

virtual const cms::Destination* activemq::cmsutil::CmsTemplate::getDefaultDestination ( ) const [inline, virtual]

Retrieves the default destination to be used for send/receive operations.

Returns:: the default destination. Const version of this method.

virtual const std::string activemq::cmsutil::CmsTemplate::getDefaultDestinationName ( ) const [inline, virtual]

Gets the name of the default destination to be used for send/receive operations.

The destination type (topic/queue) is determined by the pubSubDomain property.

Returns:: the default name of the destination for send/receive operations.

virtual int activemq::cmsutil::CmsTemplate::getDeliveryMode ( ) const [inline, virtual]

Return the delivery mode to use when sending a message.

virtual int activemq::cmsutil::CmsTemplate::getPriority ( ) const [inline, virtual]

Return the priority of a message when sending.

virtual long long activemq::cmsutil::CmsTemplate::getReceiveTimeout ( ) const [inline, virtual]

virtual long long activemq::cmsutil::CmsTemplate::getTimeToLive ( ) const [inline, virtual]

Return the time-to-live of the message when sending.

void activemq::cmsutil::CmsTemplate::init ( ) [protected, virtual]

Initializes this object and prepares it for use.

This should be called before any other methods are called. This version does nothing.

Exceptions:

CMSException	if an error occurs during initialization.
IllegalStateException	if this object has already been initialized.

Reimplemented from activemq::cmsutil::CmsDestinationAccessor.

virtual bool activemq::cmsutil::CmsTemplate::isExplicitQosEnabled ( ) const [inline, virtual]

If "true", then the values of deliveryMode, priority, and timeToLive will be used when sending a message.

Otherwise, the default values, that may be set administratively, will be used.

Returns:: true if overriding default values of QOS parameters (deliveryMode, priority, and timeToLive)

See also:: setDeliveryMode; setPriority; setTimeToLive

virtual bool activemq::cmsutil::CmsTemplate::isMessageIdEnabled ( ) const [inline, virtual]

virtual bool activemq::cmsutil::CmsTemplate::isMessageTimestampEnabled ( ) const [inline, virtual]

virtual bool activemq::cmsutil::CmsTemplate::isNoLocal ( ) const [inline, virtual]

virtual cms::Message* activemq::cmsutil::CmsTemplate::receive ( cms::Destination * destination ) [virtual]

Performs a synchronous read from the specified destination.

Parameters:

destination the destination to receive on

Returns:: the message

Exceptions:

cms::CMSException thrown if an error occurs

virtual cms::Message* activemq::cmsutil::CmsTemplate::receive ( const std::string & destinationName ) [virtual]

Performs a synchronous read from the specified destination.

Parameters:

destinationName the name of the destination to receive on (will be resolved to destination internally).

Returns:: the message

Exceptions:

cms::CMSException thrown if an error occurs

virtual cms::Message* activemq::cmsutil::CmsTemplate::receive ( ) [virtual]

Performs a synchronous read from the default destination.

Returns:: the message

Exceptions:

cms::CMSException thrown if an error occurs

virtual cms::Message* activemq::cmsutil::CmsTemplate::receiveSelected ( const std::string & selector ) [virtual]

Performs a synchronous read consuming only messages identified by the given selector.

Parameters:

selector the selector expression.

Returns:: the message

Exceptions:

cms::CMSException thrown if an error occurs

virtual cms::Message* activemq::cmsutil::CmsTemplate::receiveSelected	(	cms::Destination *	destination,
		const std::string &	selector
	)		`[virtual]`

Performs a synchronous read from the specified destination, consuming only messages identified by the given selector.

Parameters:

destination	the destination to receive on.
selector	the selector expression.

Returns:: the message

Exceptions:

cms::CMSException thrown if an error occurs

virtual cms::Message* activemq::cmsutil::CmsTemplate::receiveSelected	(	const std::string &	destinationName,
		const std::string &	selector
	)		`[virtual]`

Performs a synchronous read from the specified destination, consuming only messages identified by the given selector.

Parameters:

destinationName	the name of the destination to receive on (will be resolved to destination internally).
selector	the selector expression.

Returns:: the message

Exceptions:

cms::CMSException thrown if an error occurs

virtual void activemq::cmsutil::CmsTemplate::send	(	cms::Destination *	dest,
		MessageCreator *	messageCreator
	)		`[virtual]`

Convenience method for sending a message to the specified destination.

Parameters:

dest	The destination to send to
messageCreator	Responsible for creating the message to be sent

Exceptions:

cms::CMSException thrown if an error occurs.

virtual void activemq::cmsutil::CmsTemplate::send	(	const std::string &	destinationName,
		MessageCreator *	messageCreator
	)		`[virtual]`

Convenience method for sending a message to the specified destination.

Parameters:

destinationName	The name of the destination to send to.
messageCreator	Responsible for creating the message to be sent

Exceptions:

cms::CMSException thrown if an error occurs.

virtual void activemq::cmsutil::CmsTemplate::send ( MessageCreator * messageCreator ) [virtual]

Convenience method for sending a message to the default destination.

Parameters:

messageCreator Responsible for creating the message to be sent

Exceptions:

cms::CMSException thrown if an error occurs.

virtual void activemq::cmsutil::CmsTemplate::setDefaultDestination ( cms::Destination * defaultDestination ) [inline, virtual]

Sets the destination object to be used by default for send/receive operations.

If no default destination is provided, the defaultDestinationName property is used to resolve this default destination for send/receive operations.

Parameters:

defaultDestination the default destination

virtual void activemq::cmsutil::CmsTemplate::setDefaultDestinationName ( const std::string & defaultDestinationName ) [inline, virtual]

Sets the name of the default destination to be used from send/receive operations.

Calling this method will set the defaultDestination property to NULL. The destination type (topic/queue) is determined by the pubSubDomain property.

Parameters:

defaultDestinationName the name of the destination for send/receive to by default.

virtual void activemq::cmsutil::CmsTemplate::setDeliveryMode ( int deliveryMode ) [inline, virtual]

Set the delivery mode to use when sending a message.

Default is the Message default: "PERSISTENT".

Since a default value may be defined administratively, this is only used when "isExplicitQosEnabled" equals "true".

Parameters:

deliveryMode the delivery mode to use

See also:: isExplicitQosEnabled

virtual void activemq::cmsutil::CmsTemplate::setDeliveryPersistent ( bool deliveryPersistent ) [inline, virtual]

Set whether message delivery should be persistent or non-persistent, specified as boolean value ("true" or "false").

This will set the delivery mode accordingly, to either "PERSISTENT" or "NON_PERSISTENT".

Default it "true" aka delivery mode "PERSISTENT".

See also:: setDeliveryMode(int)

virtual void activemq::cmsutil::CmsTemplate::setExplicitQosEnabled ( bool explicitQosEnabled ) [inline, virtual]

Set if the QOS values (deliveryMode, priority, timeToLive) should be used for sending a message.

See also:: setDeliveryMode; setPriority; setTimeToLive

virtual void activemq::cmsutil::CmsTemplate::setMessageIdEnabled ( bool messageIdEnabled ) [inline, virtual]

virtual void activemq::cmsutil::CmsTemplate::setMessageTimestampEnabled ( bool messageTimestampEnabled ) [inline, virtual]

virtual void activemq::cmsutil::CmsTemplate::setNoLocal ( bool noLocal ) [inline, virtual]

virtual void activemq::cmsutil::CmsTemplate::setPriority ( int priority ) [inline, virtual]

Set the priority of a message when sending.

Since a default value may be defined administratively, this is only used when "isExplicitQosEnabled" equals "true".

See also:: isExplicitQosEnabled

virtual void activemq::cmsutil::CmsTemplate::setPubSubDomain ( bool pubSubDomain ) [inline, virtual]

Indicates whether the default destination is a topic (true) or a queue (false).

Calling this method will set the defaultDestination property to NULL.

Parameters:

pubSubDomain indicates whether to use pub-sub messaging (topics).

Reimplemented from activemq::cmsutil::CmsDestinationAccessor.

References activemq::cmsutil::CmsDestinationAccessor::setPubSubDomain().

virtual void activemq::cmsutil::CmsTemplate::setReceiveTimeout ( long long receiveTimeout ) [inline, virtual]

virtual void activemq::cmsutil::CmsTemplate::setTimeToLive ( long long timeToLive ) [inline, virtual]

Set the time-to-live of the message when sending.

Since a default value may be defined administratively, this is only used when "isExplicitQosEnabled" equals "true".

Parameters:

timeToLive the message's lifetime (in milliseconds)

See also:: isExplicitQosEnabled

Friends And Related Function Documentation

friend class ProducerExecutor [friend]

friend class ReceiveExecutor [friend]

friend class ResolveProducerExecutor [friend]

friend class ResolveReceiveExecutor [friend]

friend class SendExecutor [friend]

Field Documentation

const int activemq::cmsutil::CmsTemplate::DEFAULT_PRIORITY [static]

Default message priority.

const long long activemq::cmsutil::CmsTemplate::DEFAULT_TIME_TO_LIVE [static]

My default, messages should live forever.

const long long activemq::cmsutil::CmsTemplate::RECEIVE_TIMEOUT_INDEFINITE_WAIT [static]

Timeout value indicating a blocking receive without timeout.

const long long activemq::cmsutil::CmsTemplate::RECEIVE_TIMEOUT_NO_WAIT [static]

Timeout value indicating that a receive operation should check if a message is immediately available without blocking.

The documentation for this class was generated from the following file:

src/main/activemq/cmsutil/CmsTemplate.h

activemq::cmsutil::CmsTemplate Class Reference

Data Structures

Public Member Functions

Static Public Attributes

Protected Member Functions

Friends

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Friends And Related Function Documentation

Field Documentation
